3GC系列水电行业用泵
信息内容

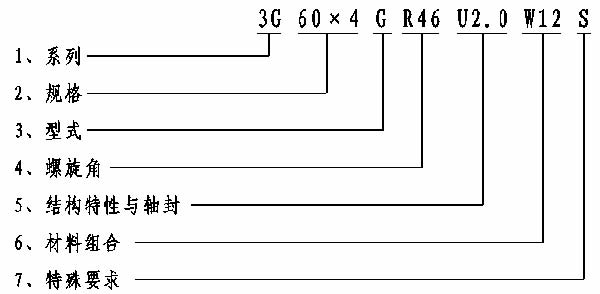

产品代号说明
1、系列：C、G 系列三螺杆泵，符合三螺杆标准GB10886-2002。
2、规格：

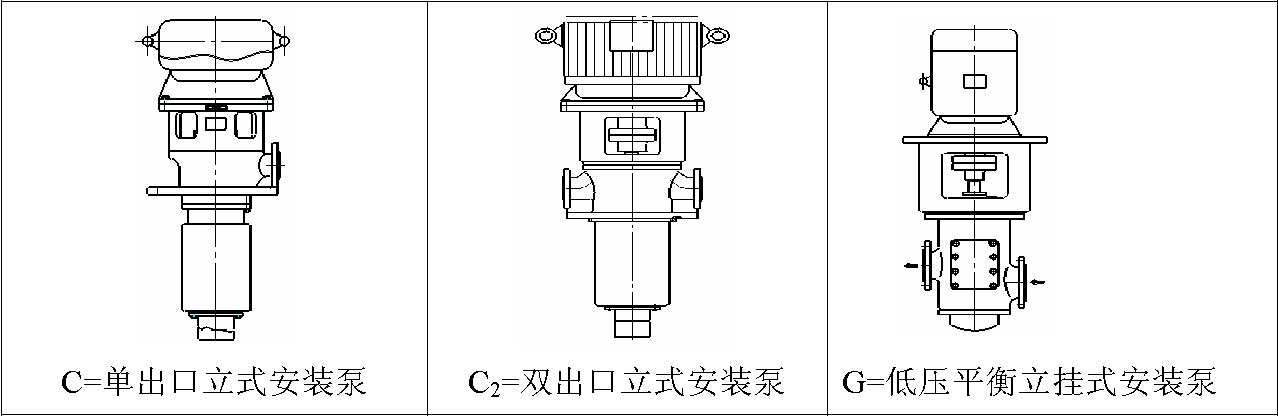

3、型式：
4、螺旋角：5、结构特性与轴封：
|
符号
|
结构说明
|
适用范围
|
|
U
|
内置滚动轴承
|
-
|
介质润滑性良好，温度小于80℃
|
|
1.0
|
骨架油封
|
-
|
介质润滑性良好，立式安装
|
|
2.0
|
2
机械密封材料组合为硬对石墨
|
0
表示密封的结构型式（不同型式机封按顺序号依次排列，如2.1，2.2）
|
介质润滑性良好，温度小于80℃
|
6、材料组合：
|
材料组合代码
|
泵体
|
衬套
|
材料组合代码
|
泵体
|
衬套
|
|
W11
|
HT200
|
HT200
|
W14
|
HT200
|
ZL109
|
|
W12
|
HT200
|
ZCuSn5Pb5Zn5
|
W22
|
焊接Q235
|
ZCuSn5Pb5Zn5
|
7、特殊要求：S 表示用户特殊要求，据不同要求分别以S1～S10 区分表示，具体序号由工厂提供。
C 系列水电行业用泵性能参数表 C 系列6.3MPa 三螺杆泵
|
泵型号
|
螺旋角
|
流量Q
|
压力P MPa
|
转速n r/min
|
功率p(kW)
|
出口1mm
|
出口2mm
|
电机型号
(Y 系列)
|
|
L/s
|
L/min
|
m3/h
|
轴功率
|
电机功率
|
|
3G25×6C－W50
|
R46
|
0.22
|
13.2
|
0.8
|
6.3
|
1450
|
2.0
|
3
|
20
|
－
|
Y100L2－4B5
|
|
R46
|
0.4
|
24
|
1.44
|
2900
|
4.1
|
5.5
|
Y132S1－2B5
|
|
3G36×6C2
|
R46
|
0.7
|
42
|
2.52
|
6.3
|
1450
|
7.2
|
11
|
25
|
25
|
Y160M－4B5
|
|
R46
|
1.5
|
90
|
5.4
|
2900
|
14
|
18.5
|
Y160L－2B5
|
|
3G45×6C2
|
R42
|
1.26
|
75.8
|
4.55
|
6.3
|
1450
|
10.36
|
15
|
32
|
32
|
Y160L－4B5
|
|
R46
|
1.6
|
96
|
5.76
|
13
|
15
|
Y160L－4B5
|
|
3G60×6C
|
R43
|
3.36
|
201.6
|
12.1
|
6.3
|
1450
|
28.22
|
37
|
40
|
－
|
Y225S-4B5
|
|
R46
|
3.75
|
225
|
13.5
|
29.6
|
37
|
Y225S-4B5
|
|
3G70×6C
3G70×6C2
|
R36
|
4.67
|
280
|
16.8
|
6.3
|
1450
|
38.7
|
45
|
50
|
40
|
Y225M-4B5
|
|
R40
|
5.3
|
318
|
19.1
|
44
|
55
|
Y250M-4B5
|
|
R46
|
6.25
|
375
|
22.5
|
50
|
55
|
Y250M-4B5
|
|
3G80×6C
|
R38
|
7.1
|
426
|
25.56
|
6.3
|
1450
|
58.8
|
75
|
65
|
－
|
Y280S-4V1
|
|
R40
|
8.35
|
501
|
30.06
|
64.5
|
75
|
Y280S-4V1
|
|
R44
|
9.31
|
559
|
33.54
|
74.8
|
90
|
Y280M-4V1
|
|
R46
|
10.15
|
609
|
36.54
|
78.5
|
90
|
Y280M-4V1
|
|
3G85×6C
|
R46
|
12.2
|
733.3
|
44
|
6.3
|
1450
|
100
|
110
|
65
|
50
|
Y315S-4V1
|
|
3G85×6C2
|
Y315S-4V1
|
|
3G90×6C
|
R42
|
11.6
|
698.0
|
41.8
|
6.3
|
1450
|
97.5
|
110
|
100
|
－
|
Y315S-4V1
|
|
R46
|
14.3
|
858
|
51.5
|
112
|
132
|
Y315M-4V1
|
|
R50
|
15
|
900
|
55.8
|
125
|
132
|
Y315M-4V1
|
|
3G100×6C
|
R38
|
13.45
|
807
|
48.42
|
6.3
|
1450
|
112
|
132
|
100
|
－
|
Y315M-4V1
|
|
R42
|
17.1
|
1026
|
61.56
|
127
|
160
|
Y315L1-4V1
|
|
R46
|
20.1
|
1206
|
72.36
|
162.1
|
185
|
Y315L2-4V1
|
C 系列水电行业用泵性能参数表4.0MPa三螺杆泵
|
泵型号
|
螺旋角
|
流量Q
|
压力P
MPa
|
转速
n
r/min
|
功率p(kW)
|
出口1
|
出口2
|
电机型号
|
|
L/s
|
L/min
|
m3/h
|
轴功率
|
电机功率
|
mm
|
mm
|
(Y系列)
|
|
3G25×6C
|
R46
|
0.22
|
13.2
|
0.8
|
4
|
1450
|
1.6
|
2.2
|
20
|
－
|
Y100L1－4B5
|
|
R46
|
0.5
|
30
|
1.8
|
2900
|
3.4
|
4
|
Y112M－2B5
|
|
3G36×5C
3G36×5C-F
3G36×5C-FB
|
R46
|
0.7
|
42
|
2.52
|
4
|
1450
|
4
|
5.5
|
25
|
－
|
Y132S-4B5
|
|
R46
|
1.6
|
96
|
5.76
|
2900
|
9.1
|
11
|
Y160M1-2B5
|
|
3G45×4C2
|
R42
|
1.42
|
85.4
|
5.12
|
4
|
1450
|
7.16
|
11
|
32
|
32
|
Y160M-4B5
|
|
R46
|
1.72
|
103
|
6.18
|
8.36
|
11
|
Y160M-4B5
|
|
R42
|
3.1
|
185
|
11.1
|
2900
|
15..3
|
18.5
|
Y160L-2B5
|
|
R46
|
3.68
|
221
|
13.25
|
17.7
|
22
|
Y180M-2B5
|
|
3G60×4C
|
R43
|
3.67
|
220
|
13.2
|
4
|
1450
|
17.6
|
22
|
40
|
－
|
Y180L-4B5
|
|
R46
|
4.22
|
253
|
15.18
|
19.8
|
30
|
Y200L-4B5
|
|
3G70×4C
3G70×4C2
|
R36
|
4.67
|
280
|
16.8
|
4
|
1450
|
22.4
|
30
|
50
|
40
|
Y200L-4B5
|
|
R40
|
5.3
|
318
|
19.08
|
24.5
|
30
|
Y200L-4B5
|
|
R46
|
6.73
|
404
|
24.24
|
31.2
|
37
|
Y225S-4B5
|
|
3G80×4C
|
R38
|
7.1
|
426
|
25.56
|
4
|
1450
|
37.8
|
45
|
65
|
－
|
Y225M-4B5
|
|
R40
|
8.35
|
501
|
30.06
|
40
|
55
|
Y250M-4B5
|
|
R44
|
9.31
|
559
|
33.54
|
43.1
|
55
|
Y250M-4B5
|
|
R46
|
10.15
|
609
|
36.54
|
46.4
|
55
|
Y250M-4B5
|
|
3G85×4C
|
R46
|
12
|
720
|
43.2
|
4
|
1450
|
64
|
75
|
65
|
-
|
Y280S-4V1
|
|
3G85×4C2
|
65
|
50
|
|
3G90×4C
|
R42
|
11.5
|
690
|
41.4
|
4
|
1450
|
60.52
|
75
|
100
|
－
|
Y280S-4V1
|
|
R46
|
14.3
|
858
|
51.48
|
66.1
|
90
|
Y280M-4V1
|
|
R50
|
15
|
900
|
54
|
80
|
90
|
Y280M-4V1
|
|
3G100×4C
|
R38
|
13.45
|
807
|
48.42
|
4
|
1450
|
66.6
|
90
|
100
|
－
|
Y280M-4V1
|
|
R42
|
17.1
|
1026
|
61.56
|
82
|
110
|
Y315S1-4V1
|
|
R46
|
20.1
|
1206
|
72.36
|
90.8
|
110
|
Y315S1-4V1
|
性能参数表C系列2.5Mpa三螺杆泵
|
泵型号
|
螺旋
角
|
流量Q
|
压力P
MPa
|
转速n
r/min
|
功率p(kW)
|
出口1
|
出口2
|
电机型号
|
|
L/s
|
L/min
|
m3/h
|
轴功率
|
电机
功率
|
mm
|
mm
|
(Y系列)
|
|
3G25×4C
|
R46
|
0.22
|
13.2
|
0.8
|
2.5
|
1450
|
1.1
|
1.5
|
20
|
－
|
Y90L－4B5
|
|
R46
|
0.5
|
30
|
1.8
|
2900
|
2.2
|
3
|
Y100L－2B5
|
|
3G36×3C2
3G36×3C
3G36×3C-F
3G36×3C-FB
|
R46
|
0.7
|
42
|
2.52
|
2.5
|
1450
|
3
|
4
|
25
|
25
|
Y112M－4B4
|
|
R46
|
1.82
|
109.2
|
6.55
|
2900
|
6
|
7.5
|
25
|
－
|
Y132S2－2B5
|
|
3G45×3C2
|
R42
|
1.42
|
85.4
|
5.12
|
2.5
|
1450
|
4.67
|
7.5
|
32
|
32
|
Y132M-4B5
|
|
R46
|
1.72
|
103
|
6.18
|
5.53
|
7.5
|
Y132M-4B5
|
|
R42
|
3.1
|
185
|
11.1
|
2900
|
10.4
|
15
|
Y160M2-2B5
|
|
R46
|
3.68
|
221
|
13.25
|
11.9
|
15
|
Y160M2-2B5
|
|
3G45×4C2
|
R54
|
2.36
|
142
|
8.52
|
2.5
|
1450
|
7.03
|
11
|
32
|
32
|
Y160M-4B5
|
|
4.98
|
299
|
17.94
|
2900
|
15.1
|
18.5
|
Y160L-2B5
|
|
3G60×3C
|
R43
|
3.67
|
220
|
13.2
|
2.5
|
1450
|
11.4
|
15
|
40
|
－
|
Y160L-4B5
|
|
R46
|
4.22
|
253
|
15.18
|
12.8
|
15
|
Y160L-4B5
|
|
3G60×4C
|
R54
|
5.73
|
344
|
20.64
|
16.7
|
22
|
Y180L-4B5
|
|
3G70×3C
3G70×3C2
|
R36
|
4.67
|
280
|
16.8
|
2.5
|
1450
|
14.1
|
18.5
|
50
|
－
|
Y180M-4B5
|
|
R40
|
5.3
|
318
|
19.08
|
16.2
|
18.5
|
Y180M-4B5
|
|
R46
|
6.73
|
404
|
24.24
|
20.5
|
22
|
50
|
40
|
Y180L-4B5
|
|
30
|
Y200L-4B5
|
|
3G70×4C
|
R54
|
8.98
|
539
|
32.34
|
2.5
|
1450
|
27
|
37
|
50
|
-
|
Y225S-4B5
|
|
3G70×4C2
|
50
|
40
|
|
3G80×3C
|
R38
|
7.1
|
426
|
25.56
|
2.5
|
1450
|
23.6
|
30
|
65
|
-
|
Y200L-4B5
|
|
R40
|
8.35
|
501
|
30.06
|
24.9
|
30
|
Y200L-4B5
|
|
R44
|
9.31
|
559
|
33.54
|
27.8
|
37
|
Y225S-4B5
|
|
R46
|
10.15
|
609
|
36.54
|
30
|
37
|
Y225S-4B5
|
|
3G80×4C
|
R54
|
13.9
|
836
|
50.16
|
2.5
|
1450
|
41
|
55
|
65
|
-
|
Y250M-4B5
|
|
3G85×3C
|
R46
|
12
|
720
|
43.2
|
2.5
|
1450
|
37.5
|
45
|
65
|
-
|
Y225M-4B5
|
|
3G85×3C2
|
65
|
50
|
|
3G90×3C
3G90×3C2
|
R42
|
11.5
|
690
|
41.4
|
|
|
39
|
45
|
100
|
-
|
Y225M-4B5
|
|
R46
|
14.3
|
858
|
51.48
|
2.5
|
1450
|
42.6
|
55
|
100
|
80
|
Y250M-4B5
|
|
R50
|
15
|
900
|
54
|
|
|
46.3
|
55
|
Y250M-4B5
|
|
3G90×4C
|
R54
|
19.65
|
1179
|
70.74
|
2.5
|
1450
|
55.5
|
75
|
100
|
-
|
Y280S-4V1
|
|
3G100×3C
3G100×3C2
|
R38
|
13.45
|
807
|
48.42
|
|
|
43.4
|
55
|
100
|
-
|
Y250M-4B5
|
|
R42
|
17.1
|
1026
|
61.56
|
2.5
|
1450
|
51.2
|
75
|
100
|
80
|
Y280S-4V1
|
|
R46
|
20.1
|
1206
|
72.36
|
|
|
58.7
|
75
|
Y280S-4V1
|
|
3G100×4C
|
R54
|
27.11
|
1627
|
97.62
|
2.5
|
1450
|
76.3
|
90
|
100
|
-
|
Y280M-4V1
|
性能参数表C系列1.0Mpa三螺杆泵
|
泵型号
|
螺旋角
|
流量Q
|
压力
|
转速
|
功率p(kW)
|
出口1
|
出口2
|
电机型号
|
|
L/s
|
L/min
|
m3/h
|
PMPa
|
nr/min
|
轴功率
|
电机功率
|
mm
|
mm
|
(Y系列)
|
|
3G25×4C
|
R46
|
0.24
|
14.4
|
0.86
|
1
|
1450
|
0.35
|
0.75
|
20
|
－
|
Y802－4B5
|
|
R46
|
0.62
|
37.2
|
2.23
|
2900
|
0.9
|
1.5
|
Y90S－2B5
|
|
3G36×3C
3G36×3C2
3G36×3C-F
3G36×3C-FB
|
R46
|
0.86
|
52
|
3.1
|
1
|
1450
|
1.2
|
2.2
|
25
|
－
|
Y100L1－4B5
|
|
R46
|
1.9
|
114
|
6.84
|
2900
|
2.55
|
4
|
Y132S2－2B5
|
|
3G45×3C2
|
R42
|
1.55
|
93.5
|
5.61
|
1
|
1450
|
2.17
|
3
|
32
|
32
|
Y100L2-4B5
|
|
R46
|
1.87
|
112
|
6.72
|
2.48
|
4
|
Y112M-4B5
|
|
R54
|
2.4
|
144
|
8.64
|
3.12
|
4
|
Y112M-4B5
|
|
R42
|
3.18
|
190.1
|
11.4
|
2900
|
5.3
|
7.5
|
Y132S2-2B5
|
|
R46
|
3.82
|
229
|
13.75
|
5.9
|
7.5
|
Y132S2-2B5
|
|
R54
|
5.02
|
301.2
|
18.07
|
7.2
|
11
|
Y160M1-2B5
|
|
3G60×3C
|
R43
|
3.9
|
234
|
14.04
|
1
|
1450
|
5.28
|
7.5
|
40
|
-
|
Y132M-4B5
|
|
R46
|
4.45
|
267
|
16.02
|
5.83
|
7.5
|
Y132M-4B5
|
|
R54
|
5.816
|
349
|
20.94
|
7.36
|
11
|
Y160M-4B5
|
|
3G70×3C
3G70×3C2
|
R36
|
4.92
|
295
|
17.7
|
1
|
1450
|
6.35
|
7.5
|
50
|
-
|
Y132M-4B5
|
|
R40
|
5.48
|
329
|
19.74
|
7.46
|
11
|
Y160M-4B5
|
|
R46
|
7
|
420
|
25.2
|
9.08
|
11
|
50
|
40
|
Y160M-4B5
|
|
R54
|
9
|
540
|
32.4
|
11.4
|
15
|
Y160L-4B5
|
|
3G80×3C
|
R38
|
7.5
|
450
|
27
|
1
|
1450
|
9.6
|
15
|
65
|
-
|
Y160L-4B5
|
|
R40
|
8.68
|
521
|
31.26
|
11.5
|
15
|
Y160L-4B5
|
|
R44
|
9.73
|
584
|
35.04
|
12.7
|
15
|
Y160L-4B5
|
|
R46
|
10.53
|
632
|
37.92
|
13.4
|
18.5
|
Y180M-4B5
|
|
R54
|
14.08
|
845
|
50.7
|
17.4
|
22
|
Y180L-4B5
|
|
3G85×3C
3G85×3C2
|
R46
|
12.67
|
760
|
45.6
|
1
|
1450
|
16.1
|
18.5
|
65
|
-
|
Y180M-4B5
|
|
65
|
50
|
|
3G90×3C
3G90×3C2
|
R42
|
12.3
|
738
|
44.28
|
1
|
1450
|
16.6
|
22
|
100
|
-
|
Y180L-4B5
|
|
R46
|
15.2
|
912
|
54.72
|
19.2
|
30
|
Y200L-4B5
|
|
R50
|
16.46
|
988
|
59.28
|
21.1
|
30
|
100
|
80
|
Y200L-4B5
|
|
R54
|
19.65
|
1179
|
70.74
|
24.4
|
30
|
Y200L-4B5
|
|
3G100×3C
3G100×3C2
|
R38
|
14.77
|
886
|
53.16
|
1
|
1450
|
20.2
|
30
|
100
|
-
|
Y200L-4B5
|
|
R42
|
17.53
|
1052
|
63.12
|
23.4
|
30
|
Y200L-4B5
|
|
R46
|
20.51
|
1231
|
73.86
|
26.4
|
37
|
100
|
80
|
Y225S-4B5
|
|
R54
|
27.12
|
1627
|
97.62
|
33.5
|
45
|
Y225M-4B5
|
性能参数表G系列6.3Mpa高压三螺杆泵
|
泵型号
|
螺旋角
|
流量Q
|
压力
|
转速
|
功率p(kW)
|
出口1
|
出口2
|
电机型号
|
|
L/s
|
L/min
|
m3/h
|
PMPa
|
N
r/min
|
轴功率
|
电机功率
|
mm
|
mm
|
(Y系列)
|
|
3G45×6G
|
R42
|
1.26
|
75.8
|
4.55
|
6.3
|
1450
|
10.36
|
15
|
65
|
50
|
Y160L－4B5
|
|
R46
|
1.6
|
96
|
5.76
|
13
|
15
|
Y160L－4B5
|
|
3G55×6G
|
R36
|
2.14
|
128.6
|
7.71
|
6.3
|
1450
|
17.57
|
22
|
80
|
65
|
Y180L-4B5
|
|
R40
|
2.39
|
143.5
|
8.61
|
19.2
|
30
|
Y200L-4B5
|
|
R46
|
2.83
|
170
|
10.2
|
23.4
|
30
|
Y200L-4B5
|
|
3G60×6G
|
R43
|
3.36
|
201.6
|
12.1
|
6.3
|
1450
|
28.22
|
37
|
80
|
65
|
Y225S-4B5
|
|
R46
|
3.75
|
225
|
12.5
|
29.6
|
37
|
Y225S-4B5
|
|
3G70×6G
|
R36
|
4.67
|
280
|
16.8
|
6.3
|
1450
|
38.7
|
45
|
125
|
100
|
Y225M-4B5
|
|
R40
|
5.3
|
318
|
19.1
|
44
|
55
|
Y250M-4B5
|
|
R46
|
6.25
|
375
|
22.5
|
50
|
55
|
Y250M-4B5
|
|
3G80×6G
|
R38
|
7.1
|
426
|
25.56
|
6.3
|
1450
|
58.8
|
75
|
125
|
80
|
Y280S-4V1
|
|
R40
|
8.35
|
501
|
30.06
|
64.5
|
75
|
Y280S-4V1
|
|
R44
|
9.31
|
559
|
33.54
|
74.8
|
90
|
Y280M-4V1
|
|
R46
|
10.15
|
609
|
36.54
|
78.5
|
90
|
Y280M-4V1
|
|
3G85×6G
|
R46
|
12.2
|
733.3
|
44
|
6.3
|
1450
|
100
|
110
|
125
|
80
|
Y315S-4V1
|
|
3G90×6G
|
R42
|
11.6
|
698
|
41.8
|
6.3
|
1450
|
97.5
|
110
|
150
|
100
|
Y315S-4V1
|
|
R46
|
14.3
|
858
|
51.5
|
112
|
132
|
Y315M-4V1
|
|
R50
|
15
|
900
|
54
|
125
|
132
|
Y315M-4V1
|
|
3G100×6G
|
R38
|
13.45
|
807
|
48.42
|
6.3
|
1450
|
112
|
132
|
150
|
100
|
Y315M-4V1
|
|
R42
|
17.1
|
1026
|
61.56
|
127
|
160
|
Y315L1-4V1
|
|
R46
|
20.1
|
1206
|
73.36
|
162.1
|
185
|
Y315L2-4V1
|
性能参数表G系列4.0Mpa三螺杆泵
|
泵型号
|
螺旋角
|
流量Q
|
压力
|
转速
|
功率p(kW)
|
出口1
|
出口2
|
电机型号
|
|
L/s
|
L/min
|
m3/h
|
PMPa
|
nr/min
|
轴功率
|
电机功率
|
mm
|
mm
|
(Y系列)
|
|
3G45×4G
|
R42
|
1.42
|
85.4
|
5.12
|
4
|
1450
|
7.16
|
11
|
65
|
50
|
Y160M-4B5
|
|
R46
|
1.72
|
103
|
6.18
|
8.36
|
11
|
Y160M-4B5
|
|
R42
|
3.1
|
185
|
11.1
|
2900
|
15..3
|
18.5
|
Y160L-2B5
|
|
R46
|
3.68
|
221
|
13.25
|
17.7
|
22
|
Y180M-2B5
|
|
3G55×4G
|
R36
|
2.13
|
128
|
7.68
|
4
|
1450
|
10.5
|
15
|
80
|
65
|
Y160L-4B5
|
|
R40
|
2.5
|
150
|
9
|
11.9
|
15
|
Y160L-4B5
|
|
R46
|
3.13
|
188
|
11.28
|
14.7
|
18.5
|
Y180M-4B5
|
|
3G60×4G
|
R43
|
3.67
|
220
|
13.2
|
4
|
1450
|
17.6
|
22
|
100
|
80
|
Y180L-4B5
|
|
R46
|
4.22
|
253
|
15.18
|
19.8
|
30
|
Y200L-4B5
|
|
3G70×4G
|
R36
|
4.67
|
280
|
16.8
|
4
|
1450
|
22.4
|
30
|
125
|
100
|
Y200L-4B5
|
|
R40
|
5.3
|
318
|
19.08
|
24.5
|
30
|
Y200L-4B5
|
|
R46
|
6.73
|
404
|
24.24
|
31.2
|
37
|
Y225S-4B5
|
|
3G80×4G
|
R38
|
7.1
|
426
|
25.56
|
4
|
1450
|
37.8
|
45
|
125
|
100
|
Y225M-4B5
|
|
R40
|
8.35
|
501
|
30.06
|
40
|
55
|
Y250M-4B5
|
|
R44
|
9.31
|
559
|
33.54
|
43.1
|
55
|
Y250M-4B5
|
|
R46
|
10.15
|
609
|
36.54
|
46.4
|
55
|
Y250M-4B5
|
|
3G85×4G
|
R46
|
12
|
720
|
43.2
|
4
|
1450
|
64
|
75
|
125
|
80
|
Y280S-4V1
|
|
3G90×4G
|
R42
|
11.5
|
690
|
41.4
|
4
|
1450
|
55.7
|
75
|
150
|
125
|
Y280S-4V1
|
|
R46
|
14.3
|
858
|
51.48
|
66.1
|
90
|
Y280M-4V1
|
|
R50
|
15
|
900
|
54
|
80
|
90
|
Y280M-4V1
|
|
3G100×4G
|
R38
|
13.45
|
807
|
48.42
|
4
|
1450
|
66.6
|
90
|
150
|
125
|
Y280M-4V1
|
|
R42
|
17.1
|
1026
|
61.56
|
82
|
110
|
Y315S1-4V1
|
|
R46
|
20.1
|
1206
|
72.36
|
90.8
|
110
|
Y315S1-4V1
|
性能参数表G系列2.5Mpa三螺杆泵
|
泵型号
|
螺旋角
|
流量Q
|
压力
P
Mpa
|
转速
n
r/min
|
功率p(kW)
|
进口
|
出口
|
电机型号
(Y系列)
|
|
L/s
|
L/min
|
m3/h
|
轴功率
|
电机功率
|
Mm
|
Mm
|
|
3G45×4G
|
R42
|
1.5
|
90.1
|
5.4
|
2.5
|
1450
|
4.67
|
7.5
|
65
|
50
|
Y132M-4B5
|
|
R46
|
1.8
|
108
|
6.48
|
5.53
|
7.5
|
Y132M-4B5
|
|
R42
|
3.15
|
189
|
11.34
|
2900
|
10.4
|
15
|
Y160M2-2B5
|
|
R46
|
3.75
|
225
|
13.5
|
11.9
|
15
|
Y160M2-2B5
|
|
R54
|
2.36
|
142
|
8.52
|
1450
|
7.03
|
11
|
Y160M-4B5
|
|
4.98
|
299
|
17.94
|
2900
|
15.1
|
18.5
|
Y160L-2B5
|
|
3G55×4G
|
R36
|
2.28
|
137
|
8.22
|
2.5
|
1450
|
6.69
|
11
|
80
|
65
|
Y160M-4B5
|
|
R40
|
2.6
|
156
|
9.36
|
7.71
|
11
|
Y160M-4B5
|
|
R46
|
3.25
|
195
|
11.7
|
9.52
|
15
|
Y160L-4B5
|
|
R54
|
4.27
|
256
|
15.36
|
12.4
|
15
|
Y160L-4B5
|
|
3G60×4G
|
R43
|
3.82
|
229
|
13.74
|
2.5
|
1450
|
11.4
|
15
|
100
|
80
|
Y160L-4B5
|
|
R46
|
4.35
|
261
|
15.66
|
12.8
|
15
|
Y160L-4B5
|
|
R54
|
5.73
|
344
|
20.64
|
16.7
|
22
|
Y180L-4B5
|
|
3G70×4G
|
R36
|
4.87
|
292
|
17.52
|
2.5
|
1450
|
14.1
|
18.5
|
125
|
100
|
Y180M-4B5
|
|
R40
|
5.43
|
326
|
19.56
|
16.2
|
18.5
|
Y180M-4B5
|
|
R46
|
6.93
|
416
|
24.96
|
20.5
|
30
|
Y200L-4B5
|
|
R54
|
8.98
|
539
|
32.34
|
27
|
37
|
Y225S-4B5
|
|
3G80×4G
|
R38
|
7.35
|
441
|
26.46
|
2.5
|
1450
|
23.6
|
30
|
125
|
100
|
Y200L-4B5
|
|
R40
|
8.53
|
512
|
30.72
|
24.9
|
30
|
Y200L-4B5
|
|
R44
|
9.58
|
575
|
34.5
|
27.8
|
37
|
Y225S-4B5
|
|
R46
|
10.4
|
626
|
37.56
|
30
|
37
|
Y225S-4B5
|
|
R54
|
13.9
|
836
|
50.16
|
41
|
55
|
Y250M-4B5
|
|
3G85×4G
|
R46
|
13.1
|
786
|
47.16
|
2.5
|
1450
|
37.5
|
45
|
125
|
80
|
Y225M-4B5
|
|
3G90×4G
|
R42
|
12.3
|
738
|
44.28
|
2.5
|
1450
|
39
|
45
|
150
|
125
|
Y225M-4B5
|
|
R46
|
14.9
|
895
|
53.7
|
42.6
|
55
|
Y250M-4B5
|
|
R50
|
15.5
|
930
|
55.8
|
46.3
|
55
|
Y250M-4B5
|
|
R54
|
19.7
|
1179
|
70.74
|
55.5
|
75
|
Y280S-4V1
|
|
3G100×4G
|
R38
|
14.8
|
886
|
53.13
|
2.5
|
1450
|
43.4
|
55
|
150
|
125
|
Y250M-4B5
|
|
R42
|
17.5
|
1052
|
63.12
|
51.2
|
75
|
Y280S-4V1
|
|
R46
|
20.5
|
1231
|
73.8
|
58.7
|
75
|
Y280S-4V1
|
|
R54
|
27.1
|
1627
|
97.62
|
76.3
|
90
|
Y280M-4V1
|
|
|
|
|
|
|
|
|
|
|
|
|
|
性能参数表G系列1.0Mpa三螺杆泵
|
泵型号
|
螺旋角
|
流量Q
|
压力
P
Mpa
|
转速
n
r/min
|
功率p(kW)
|
进口
|
出口
|
电机型号
(Y系列)
|
|
L/s
|
L/min
|
m3/h
|
轴功率
|
电机功率
|
mm
|
mm
|
|
3G45×4G
|
R42
|
1.59
|
95.4
|
5.72
|
1
|
1450
|
2.17
|
3
|
65
|
50
|
Y100L2-4B5
|
|
R46
|
1.9
|
114
|
6.84
|
2.48
|
4
|
Y112M-4B5
|
|
R54
|
2.5
|
150
|
9
|
3.12
|
4
|
Y112M-4B5
|
|
R42
|
3.25
|
195
|
11.7
|
2900
|
5.3
|
7.5
|
Y132S2-2B5
|
|
R46
|
3.85
|
231
|
13.86
|
5.9
|
7.5
|
Y132S2-2B5
|
|
R54
|
5.12
|
307
|
18.42
|
7.2
|
11
|
Y160M1-2B5
|
|
3G55×4G
|
R36
|
2.37
|
142
|
8.52
|
1
|
1450
|
3.03
|
4
|
80
|
65
|
Y112M-4B5
|
|
R40
|
2.7
|
162
|
9.72
|
3.53
|
5.5
|
Y132S-4B5
|
|
R46
|
3.38
|
203
|
12.18
|
4.25
|
5.5
|
Y132S-4B5
|
|
R54
|
4.48
|
269
|
16.14
|
5.42
|
7.5
|
Y132M-4
|
|
3G60×4G
|
R43
|
3.97
|
238
|
14.28
|
1
|
1450
|
5.28
|
7.5
|
100
|
80
|
Y132M-4B5
|
|
R46
|
4.52
|
271
|
16.26
|
5.83
|
7.5
|
Y132M-4B5
|
|
R54
|
6
|
360
|
21.6
|
7.36
|
11
|
Y160M-4B5
|
|
3G70×4G
|
R36
|
5.02
|
301
|
18.06
|
1
|
1450
|
6.35
|
7.5
|
125
|
100
|
Y132M-4B5
|
|
R40
|
5.6
|
336
|
20.16
|
7.46
|
11
|
Y160M-4B5
|
|
R46
|
7.17
|
430
|
25.8
|
9.08
|
11
|
Y160M-4B5
|
|
R54
|
9.35
|
561
|
33.66
|
11.4
|
15
|
Y160L-4B5
|
|
3G80×4G
|
R38
|
7.6
|
455.7
|
27.34
|
1
|
1450
|
9.8
|
15
|
125
|
100
|
Y160L-4B5
|
|
R40
|
8.77
|
526
|
31.56
|
11.5
|
15
|
Y160L-4B5
|
|
R44
|
9.88
|
593
|
35.58
|
12.7
|
15
|
Y160L-4B5
|
|
R46
|
10.73
|
644
|
38.64
|
13.4
|
18.5
|
Y180M-4B5
|
|
R54
|
14.43
|
866
|
51.96
|
17.4
|
22
|
Y180L-4B5
|
|
3G85×4G
|
R46
|
13.33
|
800
|
48
|
1
|
1450
|
16.6
|
22
|
125
|
80
|
Y180L-4B5
|
|
3G90×4G
|
R42
|
12.7
|
762
|
45.72
|
1
|
1450
|
16.6
|
22
|
150
|
125
|
Y180L-4B5
|
|
R46
|
15.5
|
930
|
55.8
|
19.2
|
30
|
Y200L-4B5
|
|
R50
|
17.3
|
1038
|
62.28
|
21.1
|
30
|
Y200L-4B5
|
|
R54
|
20.3
|
1218
|
7308
|
24.4
|
30
|
Y200L-4B5
|
|
3G100×4G
|
R38
|
15.13
|
908
|
54.48
|
1
|
1450
|
20.2
|
30
|
150
|
125
|
Y200L-4B5
|
|
R42
|
18.05
|
1082
|
65
|
23.4
|
30
|
Y200L-4B5
|
|
R46
|
21.08
|
1265
|
75.9
|
26.4
|
37
|
Y225S-4B5
|
|
R54
|
27.92
|
1675
|
100.5
|
33.5
|
45
|
Y225M-4B5
|
