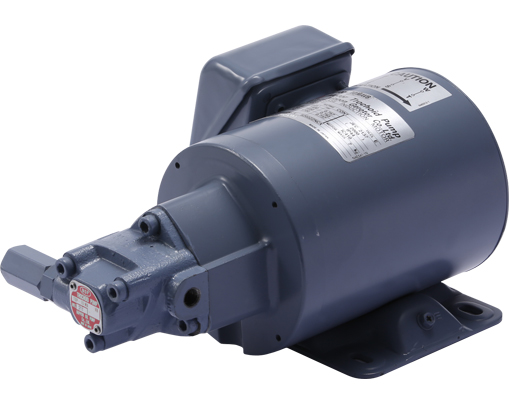

TOP-1ME200S-13MAVB齿轮泵
信息内容
- 单相100V马达一体型
- 马达输出功率75W/200W
- 小型、轻量
- 小容量(0.8～4.5cm3/rev)
- 低吐出压
- 用途：输送操作油、润滑油
- 液体温度：-5～80°C
- 适用的液体粘度：10～500mm2/sec
- 可选择溢流阀
产品型号
|
马达转数的吐出量(理论值)?/min
|
马达转数50Hz 1500min-1
|
马达转数的吐出量(理论值)?/min
|
马达转数60Hz 1800min-1
|
适用马达输出功率的最大吐出压力 MPa
|
适用马达输出功率的最大吐出压力 MPa
|
75W
|
200W
|
75W
|
200W
|
TOP-10MA
|
1.2
|
0.5
|
0.5
|
1.4
|
0.4
|
0.5
|
TOP-11MA
|
2.2
|
0.5
|
0.5
|
2.7
|
0.3
|
0.5
|
TOP-12MA
|
3.7
|
0.2
|
0.5
|
4.5
|
0.1
|
0.5
|
TOP-13MA
|
6.7
|
-
|
0.5
|
8.1
|
-
|
0.5
|
|
|
|
|
|
|
|
单相笼型感应马达/全封闭型/E级绝缘
输出功率(W)
|
极数(P)
|
额定
|
电压(V)
|
频率(Hz)
|
转数(min-1)
|
电流(A)
|
概略重量(kg)
|
75
|
4
|
连续
|
100
|
50
|
1430
|
2.00
|
5.9
|
60
|
1730
|
1.60
|
200
|
4
|
连续
|
100
|
50
|
1430
|
5.80
|
10.0
|
60
|
1730
|
5.00
|
- *1ME75S为电容器运转型
- *1ME200S为电容器起动型
- *最大吐出压力为“供油：ISO-VG46油温：40°C”时的值
规格型号：
TOP-1ME75S-10MA
TOP-1ME200S-10MA
TOP-1ME75S-11MA
TOP-1ME200S-11MA
TOP-1ME75S-12MA
TOP-1ME200S-12MA
TOP-1ME75S-13MA
TOP-1ME200S-13MA
TOP-1ME75S-10MAVB
TOP-1ME200S-10MAVB
TOP-1ME75S-11MAVB
TOP-1ME200S-11MAVB
TOP-1ME75S-12MAVB
TOP-1ME200S-12MAVB
TOP-1ME75S-13MAVB
TOP-1ME200S-13MAVB
TOP-1ME200SH-10MA-BT
TOP-1ME200SH-11MA-BT
TOP-1ME200SH-12MA-BT
TOP-1ME200SH-13MA-BT
TOP-1ME200SH-10MAVB-BT
TOP-1ME200SH-11MAVB-BT
TOP-1ME200SH-12MAVB-BT
TOP-1ME200SH-13MAVB-BT
| |
